ZLX Series
Drop-In Industry Replacement
Frequency: 50 MHz - 4 GHz
Bandwidth: Fixed, to octave
Output Power: 0 to +7 dBm
Supply voltage: +3 to +5 VDC
Phase Noise (Fout = 3 GHz):
<-103 dBc/Hz @ 10 KHz
CLX Series
Exceptional Phase-Noise
Frequency: 200 MHz - 4 GHz
Bandwidth: Fixed Frequency
Output Power: 0 to 13 dBm
Supply voltage: +3, +3.3, +5 VDC
Phase Noise (Fout = 300 MHz):
<-120 dBc/Hz @ 10 KHz
SLX Series
Ultra Miniature, Low Power Consumption
Frequency: 50 MHz - 6 GHz
Bandwidth: Fixed, to octave
Output Power: +0 dBm nominal
Supply voltage: +3, +3.3, or +5 VDC
Phase Noise (Fout = 290 MHz):
<-100 dBc/Hz @ 10 KHz
LX Series
Cost-Effective, High Volume
Frequency: 5 MHz - 6 GHz
Bandwidth: Fixed, to octave
Output Power: +13 to +7 dBm
Supply voltage: +3, +3.3, +5 VDC
Phase Noise (Fout = 2 GHz):
<-98 dBc/Hz @ 10 KHz
HFS Series
Low phase noise, low power consumption
Frequency: 5 MHz - 8 GHz
Bandwidth: Fixed, to > octave
Output Power: Up to +13 dBm
Supply voltage: +5, +8, or +12 VDC
Phase Noise (Fout = 2 GHz):
<-110 dBc/Hz @ 10 KHz
UPN Series
High Frequency, Hi-Rel
Frequency: 50 MHz - 10 GHz
Bandwidth: Fixed, to octave
Output Power: Up to +13 dBm
Supply voltage: +3 to +12 VDC
Phase Noise (Fout = 8 GHz):
<-95 dBc/Hz @ 10 KHz
HLX Series
Hi-Rel, Hybridized, Surface-mount
Frequency: 50 MHz - 12 GHz
Bandwidth: Fixed, to octave
Output Power: Up to +13 dBm
Supply voltage: +3 to +12 VDC
Phase Noise (Fout = 1 GHz):
<-100 dBc/Hz @ 10 KHz
LT Series
High Frequency, High Vibration Tolerance
Frequency: 50 MHz - 12 GHz
Bandwidth: Fixed, to 30%
Output Power: Up to +13 dBm
Supply voltage: +3 to +12 VDC
Phase Noise (Fout = 3 GHz):
<-100 dBc/Hz @ 10 KHz
THOR Series
High Frequency, Broadband
Frequency: 1 GHz - 18 GHz
Bandwidth: Fixed, to >30%
Output Power: Up to +15 dBm
Supply voltage: +5 to +12 VDC
Phase Noise (Fout = 13 GHz):
<-90 dBc/Hz @ 10 KHz
SLFS/SLS Series
Multi-Purpose Synthesizers
Frequency: 10 MHz - 12 GHz
Bandwidth: Fixed, to > 30%
Output Power: Up to +20 dBm
Supply voltage: +5, +8, +15 VDC
Phase Noise (Fout = 2 GHz):
<-100 dBc/Hz @ 10 KHz
MBS Series
Multi-Octave Band Coverage
Frequency: 10 MHz - 8 GHz
Bandwidth: Up to 4 octaves in single units
Output Power: Up to +20 dBm
Supply voltage: +5, +8, or +12 VDC
Phase Noise
<-90 dBc/Hz @ 10 KHz

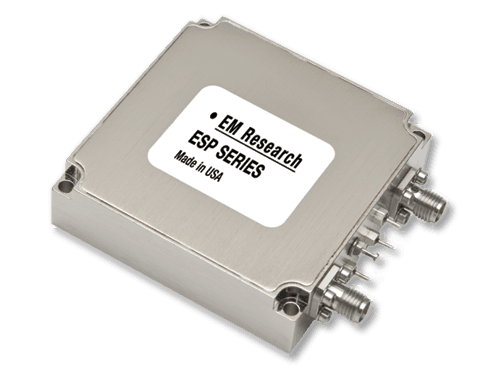

ESP Series
Phase-Locked DRO Replacement
Frequency: 50 MHz - 26 GHz
Bandwidth: Fixed Frequency
Output Power: Up to +20 dBm
Supply voltage: +5 to +30 VDC
Phase Noise (Fout =2.4 GHz):
<-110 dBc/Hz @ 10 KHz
XLT Series
Hi-Rel Crystal Oscillator Replacement
Frequency: 5 MHz - 500 MHz
Bandwidth: Fixed, to > 30%
Output Power: Up to +13 dBm or TTL/CMOS
Supply voltage: +3 to +12 VDC
Phase Noise
<-145 dBc/Hz @ 10 KHz
PLXO Series (SMA)
Connectorized Phase-Locked Crystal Oscillator
Frequency: 5 MHz - 500 MHz
Jitter (Fout = 120 MHz):
0.05 pSec, RMS
Output Power: +7 dBm or TTL/CMOS
Supply voltage: +5, +8, +12 or +15 VDC
Phase Noise
<-125 dBc/Hz @ 1 KHz
PLXO Series (SMT)
Surface-Mount Phase-Locked Crystal Oscillator
Frequency: 5 MHz - 500 MHz
Jitter (Fout = 120 MHz):
0.05 pSec, RMS
Output Power: +7 dBm or TTL/CMOS
Supply voltage: +5 VDC
Phase Noise
<-125 dBc/Hz @ 1 KHz
MX Series
2X Multiplier, High Frequency
Frequency: 10 GHz - 30 GHz
Conversion Gain: 7 to 10 dB Nominal
Input Level: 0 to +7 dBm
O/I Isolation: >20 dB
Output Power: +7 to +10 dBm
Supply voltage: +5 to +12 VDC
Welcome to EM Research, Inc.
We manufacture the most complete lineup of high-performance standard and custom-designed signal sources in the microwave industry. We specialize in surface-mount and modular Phase-Locked Oscillators (PLO) and Frequency Synthesizers (PLL) from 5 MHz to over 30 GHz for commercial and military systems.
